Suzhou Quick Laser Technology Co., Ltd. waa mid ka mid ah soosaarayaasha hormuudka ka ah iyo alaab-qeybiyeyaasha ultra{2}}mashiinka goynta laser fiber qaab weyn ee Shiinaha. Waayo-aragnimada badan, waxaanu si diiran kuugu soo dhawaynaynaa inaad iibsato ultra sare -mashiinka goynta laysarka qaabka wayn ee aad ka iibsanayso warshadeena. Alaab tayo leh iyo qiimo macquul ah ayaa diyaar ah.
Dulmarka alaabta
Qalabka laser-ka ee HG wuxuu leeyahay sariir alxan leh oo saxan oo leh qayb, dabaq{0}} nakhshad ku rakiban. Kursiga shaqada ee goonida ah, saliid toos ah, is dhexgalka garaadka, kontoroolka aragga, nidaamka ka saarida siigada, iyo -Hawlgallada sii daaya ee hooseeya ayaa xaqiijiya dayactirka{3}} bilaash, eco-waxqabad saaxiibtinimo.
Waa maxay sababta aad u dooratay Taxanaha QLTEK HG?
Ultra- Xawaaraha sare
Saxnaanta Sare
Tayo Sare
Badbaadada Sare
Indheergaradnimada
Muuqaalka ugu muhiimsan

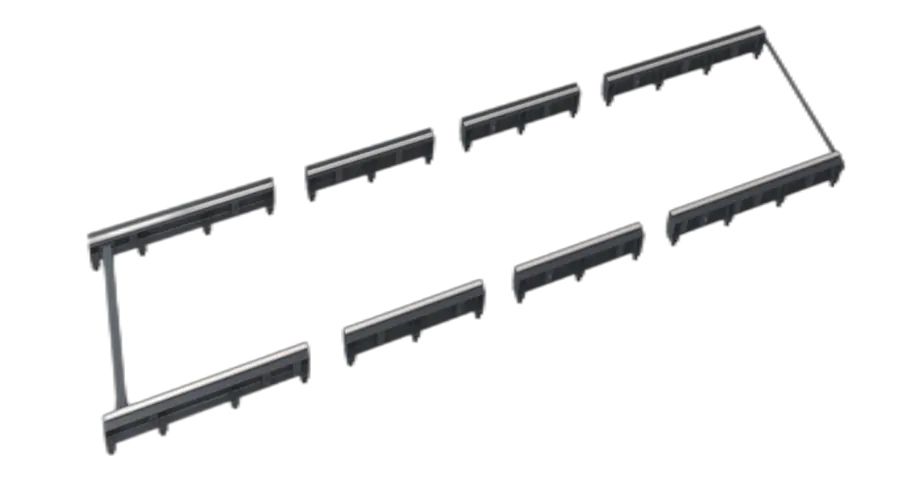

Bir la isku daray oo alxan leh
- Qadar yar oo cilladaysan
- Saxnimo sare-
- Waxqabad firfircoon oo wanaagsan
Alxanka saxda ah ee sariirta weelka leh ee la isku daray
- Kala qaybsanaan iyo sagxad -dhagax saaray
- Sariirta laashka waxay ka soocday kursiga shaqada

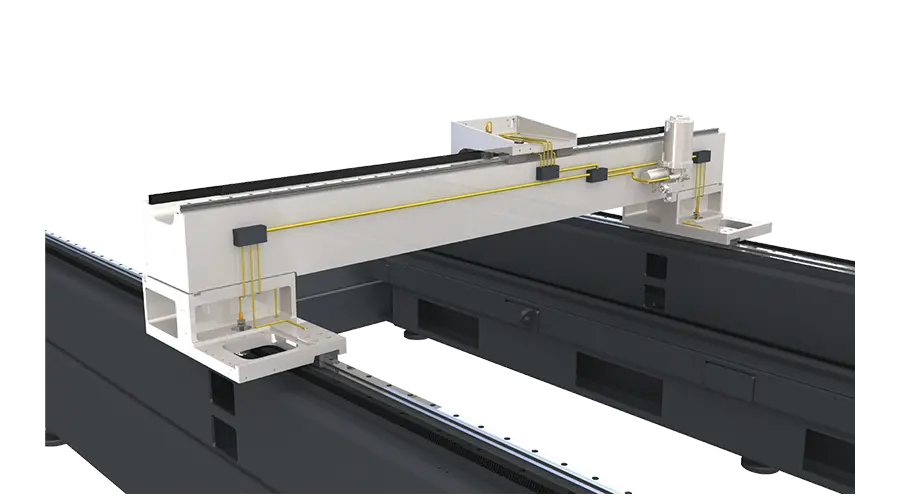

Nidaamka sifaynta tooska ah
- Isdhexgalka caqliga
- Xakamaynta muuqaalka iyo dayactirka{0}} bilaash

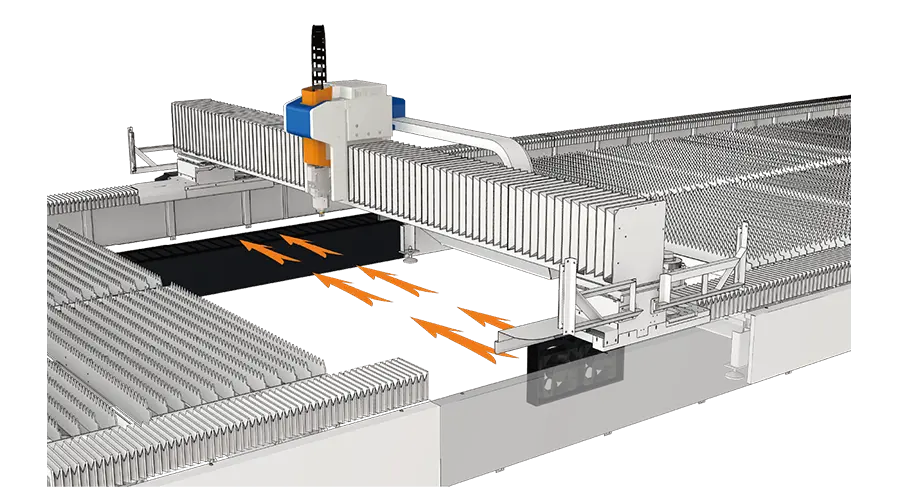

Raac - qaab dhismeed ka saarid boodhka
- Qiiqa iyo siigada oo yaraada, ilaalinta deegaanka
Multi- xagasha A/B rogata farsamada (ikhtiyaar)
- Xakamaynta saxda ah ee habka goynta goynta waxay gooyn kartaa k, x, y, a, v, iwm
Autofocus laser goynta madaxa
- Naqshad cusub oo indhaha ah, oo daboolaysa in ka badan 90% aagga biyaha qaboojinta, xakamaynta kulka
- Noocyada kala duwan{0}lakabka -nooca qaab dhismeedka muraayadda ilaalinta, dayactirka fudud iyo isticmaalka kharash yar
- Ogaanshaha heerkulka badan, - la socodka dhabta ah ee wakhtiga goynta heerka madaxa
|
PARAAMETER |
|||||
|---|---|---|---|---|---|
|
Taxanaha HG |
HG15030 |
HG15035 |
HG15040 |
||
|
Awood |
12kW-80kW |
12kW-80kW |
12kW-80kW |
||
|
Aagga Goynta (dhererka* ballac) |
15000mm*3000mm |
15000mm*3500mm |
15000mm*4000mm |
||
|
X{{0}Axis Travel |
15000mm (dhererka waxaa loo habeyn karaa iyadoo loo eegayo shuruudaha) |
||||
|
Y{0}Safarka dhidibka |
3100mm |
3600mm |
4100mm |
||
|
Z{{0}Axis Travel |
270mm |
270mm |
270mm |
||
|
Saxnaanta meelaynta dhidibka X/Y |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m |
||
Tusaalooyinka
